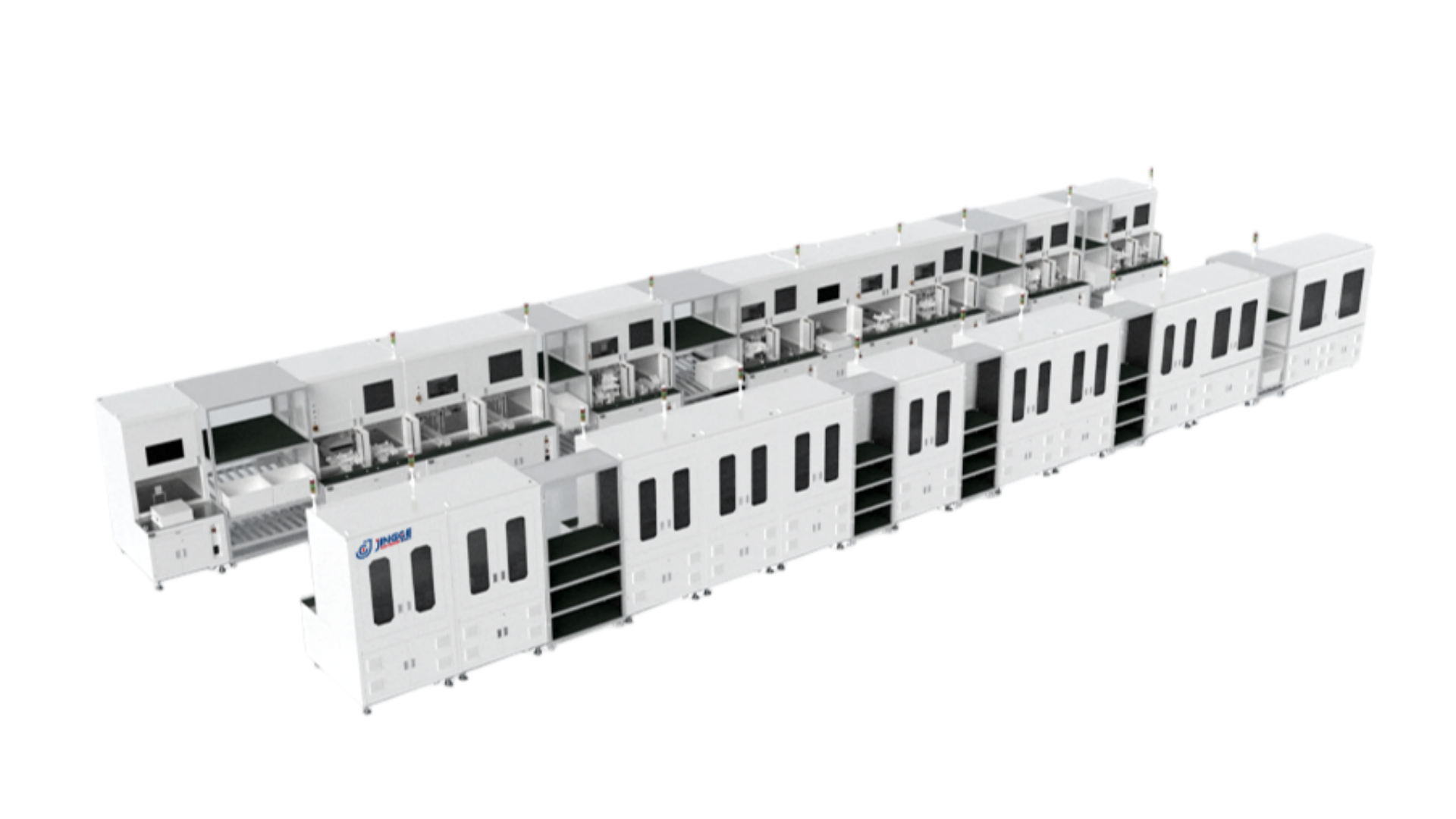

Sub-scheme Overview (Quantitative Description)：

Integrates high-precision collection and battery simulation to achieve full-process functional and safety testing of BMS.

Main Processes (Process Flow Points)：

AFE Accuracy Test、Balancing Test、Isolation Withstand Voltage Test、MOS Drive Test、Communication Test

Features / Advantages：

Battery simulator simulates cell parameters、Full-range safety testing、Software displays cell data in real time

Unit Composition：

BMS Mainboard Unit、Battery Simulation Unit、Protection Test Unit、Communication Test Unit
