Product Model：

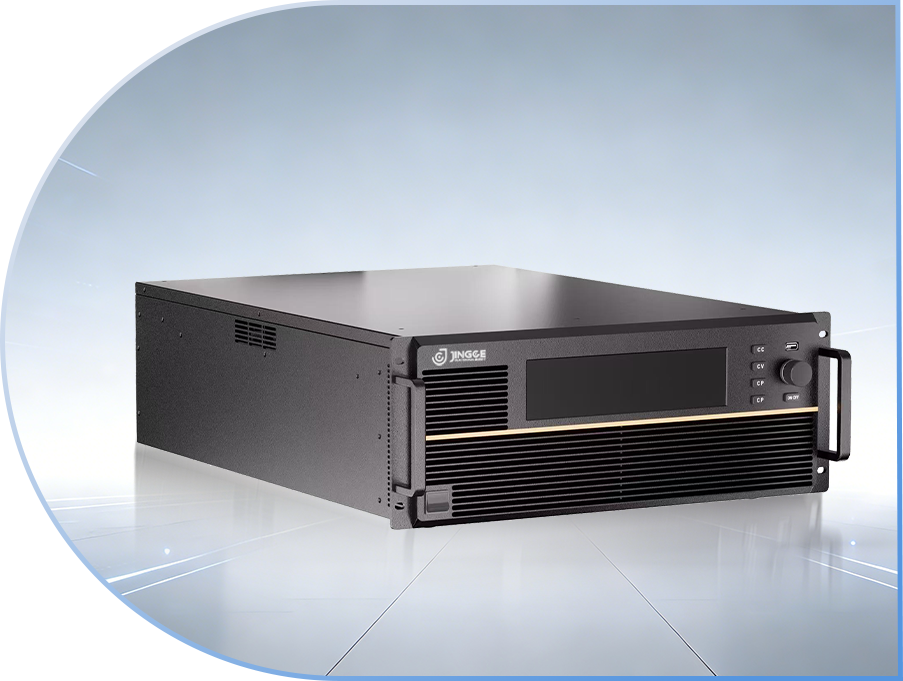

JN807



Product Introduction：

JN807 Series Programmable Electronic Load achieves industry-leading power density.
With modular design, single 19-inch cabinet can reach up to 64kW, suitable for next-generation OBC and charging pile testing.


Specifications：

Two models: 120V/1200V
Single module: 8kW (max) @ 4U
Voltage accuracy<0.1% FS, current accuracy <0.2% FS
Parallel operation up to 600kW


Product Features：

Supports master/slave cascade mode; parallel operation of multiple loads via external sync signals (single cabinet 64kW max, multiple cabinets 640kW max).
Supports four operating modes: CC (constant current), CV (constant voltage), CR (constant resistance), CP (constant power).
Supports remote sensing and simulated short-circuit test.
Communication interfaces: GPIB, RS232, LAN, optional per customer requirements.
