Product Model：

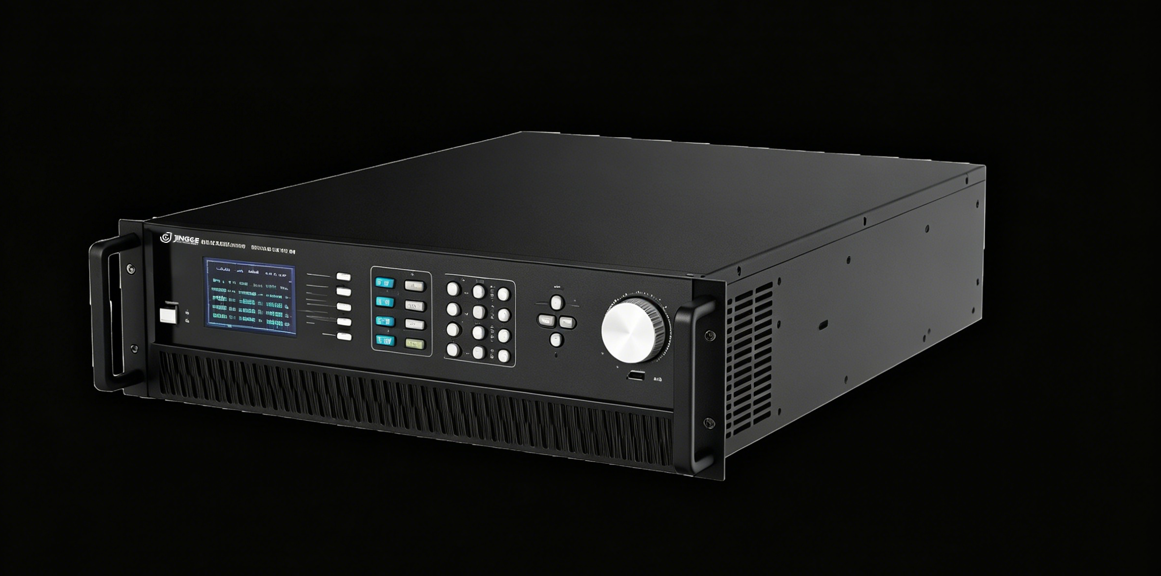

JN81



Product Introduction：

Medium-power electronic load, using a low-cost solution to fill the 1~3kW power range, matching the voltage and power requirements of on-board DC-DC.

Specifications：

0~120V/0~80A/1kW/3CH
Min turn-on voltage: 2V@40A
CC mode accuracy: 0.05%+0.05%FS
CV mode accuracy: 0.025%+0.025%FS


Product Features：

High power density: 3kW/3U, 3-channel design.
Supports static CC/CV/CR/CP test modes and dynamic CC/CR/CP test modes.
Supports remote sensing and short-circuit test.
Provides LAN, RS-232 communication interfaces.
