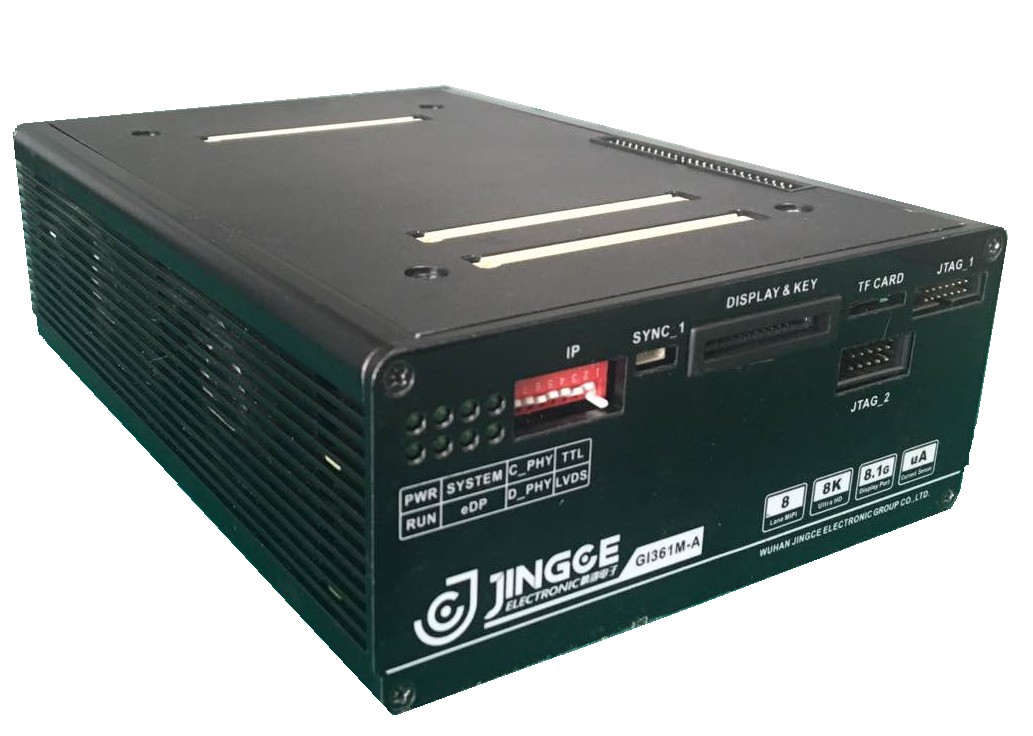

Product Model：

GI36



Product Introduction：

Provides electrical test drive signals from CELL to module, meeting the extreme electrical and optical performance test requirements of ultra-high resolution, ultra-high power display screens.


Specifications：

MDL Electrical Test Signal Generator:
Supports DP1.4-8.1G (upgradable to DP2.0-10G);
Supports DPHY 2.5G;
Supports TTL, LVDS, CPHY, MCU interfaces;
15A 250W high-power EL power supply;
12A 120W high-power Bat power supply;
9CH 20mV high-precision constant voltage source;
±1uA current monitoring accuracy.


Product Features：

Full-script application platform, supports interface-level user programming.
Supports programmable step time-of-flight control.
Supports hardware-level remote compensation.
Supports hardware-level surge protection.
Fully self-developed IP, supports protocol customization.
Supports TP docking and third-party SDK docking.
