Product Model：

RS1000



Product Introduction：

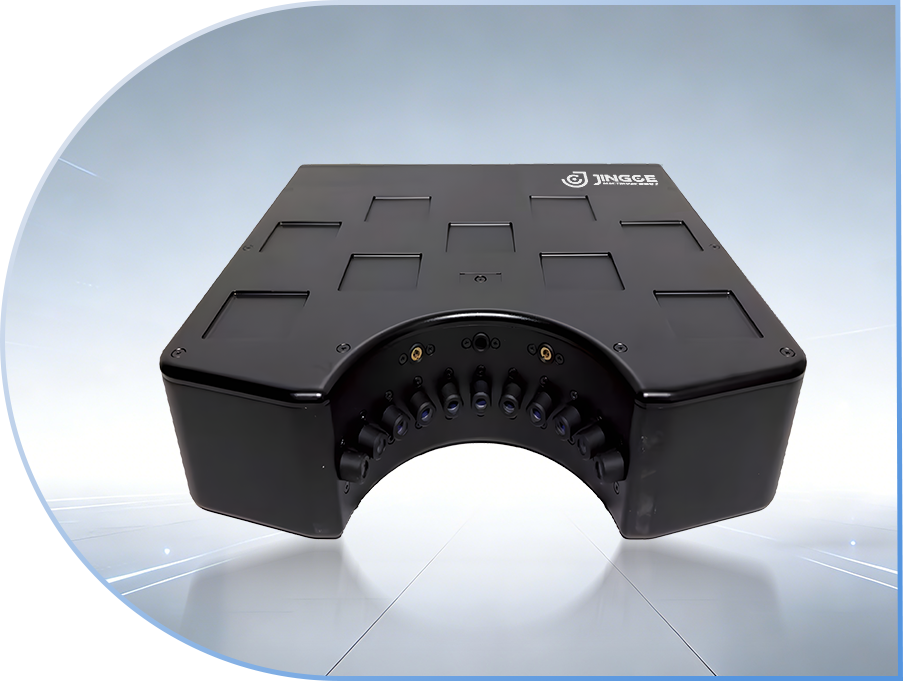

RS1000 Multi-Angle Spectrometer is a spectrometer with 11 different viewing angles, integrating 11 spectrometers in one unit.
It measures display spectral curves, brightness and chromaticity data, and calculates JNCD color shift.
It meets both R&D and production line testing requirements, and is widely used for brightness, chromaticity and JNCD color shift testing of mobile phones, tablets, TVs, automotive displays, etc.

Specifications：

Measurement angles: 11 angles: 0°, ±15°, ±30°, ±45°, ±60°, ±70°;
Measurement range: 0.005–10,000 nits;
Brightness accuracy:≥0.005 nit: ±6%；≥0.2 nit: ±2%.
Chromaticity accuracy:≥0.005 nit: ±0.005；≥0.1 nit: ±0.003.


Product Advantages：

1. Multiple angles: 1 independent measuring channel for each of the 11 angles with consistent accuracy.
2. Fast and easy operation: one-key measurement to obtain spectral data of 11 angles simultaneously.
3. Good scalability: suitable for both laboratory research and online inspection.
4. Supports JNCD color shift calculation.


Success Cases：

Huawei High-end Automotive Display Viewing Angle and JNCD Color Shift Measurement
