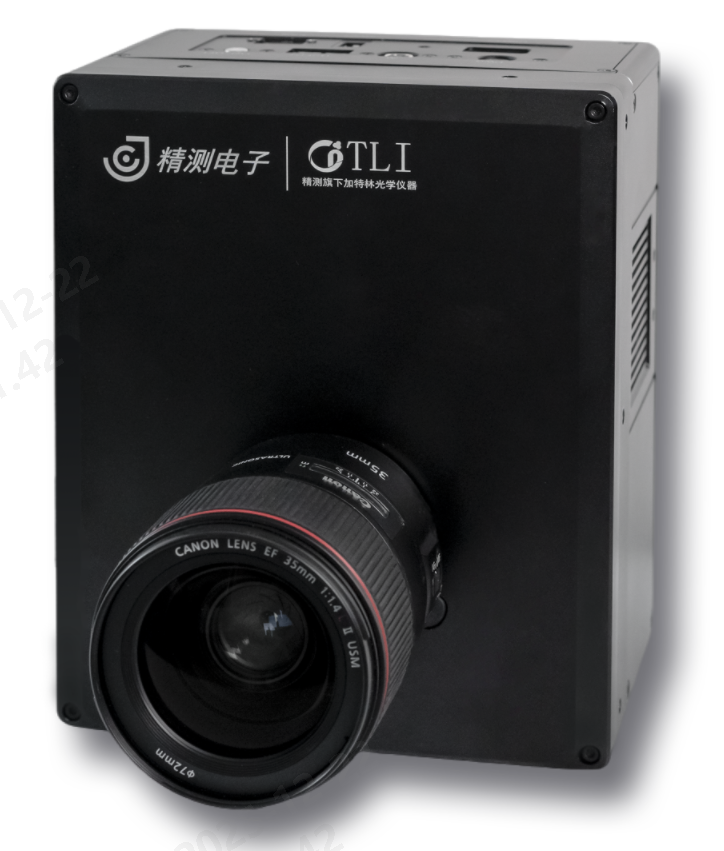

Product Model：

ICM-CF-31\ICM-CF-61



Product Introduction：

Built-in optical filters matching human eye perception, simulating pixel-level brightness and chromaticity perception of displays through integration.
Widely used in AOI, Demura, BlackMura and other testing for automotive central control panels, instrument panels, multimedia screens and other display products.

Specifications：

1. Luminance measurement range: 0.001 ~ 10? nits
2. Accuracy: Luminance (Y) ± 3%, Chromaticity coordinates (x,y) ± 0.003
3. Repeatability: Luminance (Y) 0.02%, Chromaticity coordinates (x,y) 0.00005


Product Advantages：

1. Built-in GPU; one industrial computer can support multiple CF colorimeters on mass production lines.
2. Compatible with auto-focus lenses of different configurations for various screen sizes, strong scene compatibility.
3. Standardized SDK interface for easy system integration.
4. Supports automotive BlackMura testing solutions.


Success Cases：

Widely used in mass production by automotive customers including BOE, ADAYO,HIWAY, etc.
