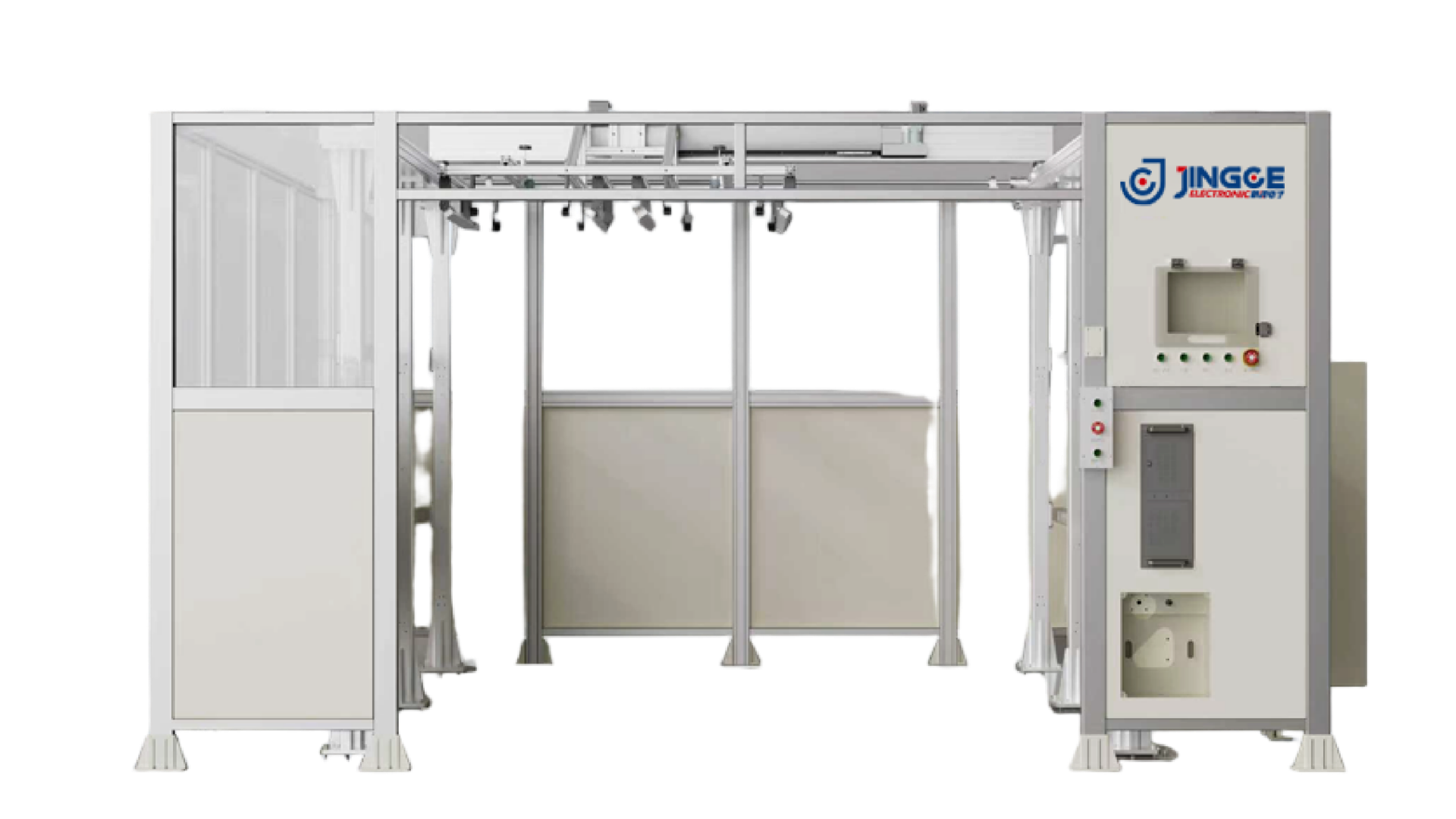

Pre-Cover Battery Pack AOI Inspection Machine
Equipment Description

The equipment mainly uses 2D+3D cameras and AI algorithms to inspect the quality of components and module surfaces before the battery pack cover is closed, with photo recording.



Equipment advantages
05
Mature technology with equipment failure rate ≤ 2%.
04
Wide compatibility: Battery pack dimensions: Length 900-2500 mm, Width 600-1800 mm, Height 100-200 mm.
03
High productivity: Line efficiency reaches 18 JPH.
02
The vision camera system covers the maximum compatible product range. Images are stored locally and associated with battery pack numbers with a local storage period of over 1 year. Data can be uploaded to factory-level MES and automatically overwritten periodically for traceability.
01
Safe and reliable, equipped with multiple emergency stop switches, door & window sensors and safety signs.
Specifications
Basic Parameters Value
Equipment Dimensions L3000×W2500×H2200mm
Line Yield ≥99%
Mounting Part Recognition Accuracy ≥99%
CCD False Rejection Rate ≤0.5%
CCD Leakage Rate ≤0.1%
MSA Repeatability <10%
