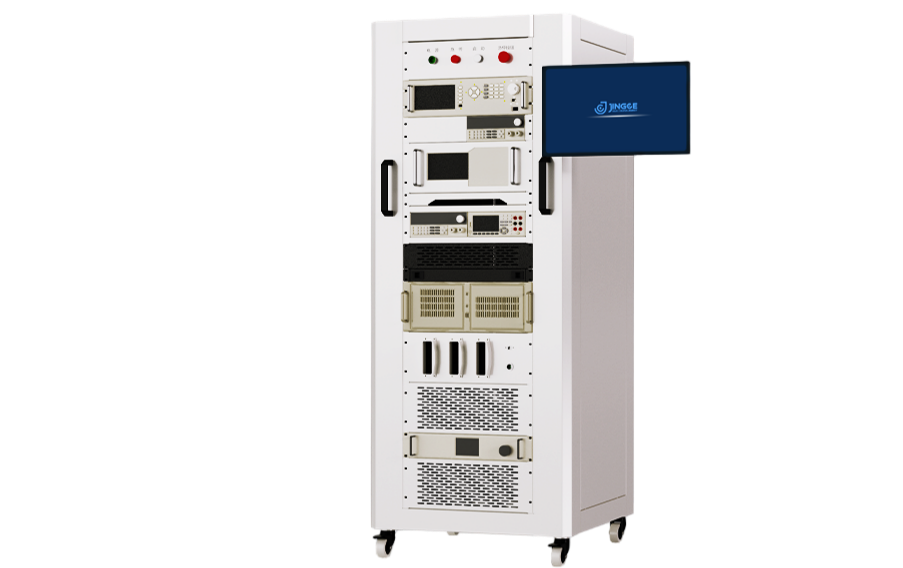

BMS Test System
Equipment Description:

A flexibly configurable test platform developed for Battery Management Systems (BMS) in new energy vehicles and battery energy storage systems.Suitable for BMS test and verification in all stages from R&D, design to production.It can simulate battery parameters including cell voltage, cell current, total voltage, and fault conditions such as overvoltage, undervoltage, overcurrent, and overtemperature.It features output and detection of digital signals, analog signals, and switching signals.The system is highly integrated with wide application coverage, enabling simulation and detection of various signals.


Equipment advantages
06
Modular architecture for flexible configuration based on customer requirements.
05
Full-link data & system integration: Support import of CAN DBC files, connection to customer MES systems, operating condition data import and battery model parameter configuration. Reserved software interfaces for integration with automatic production lines. Automatic generation of test reports and production reports with customizable formats.
04

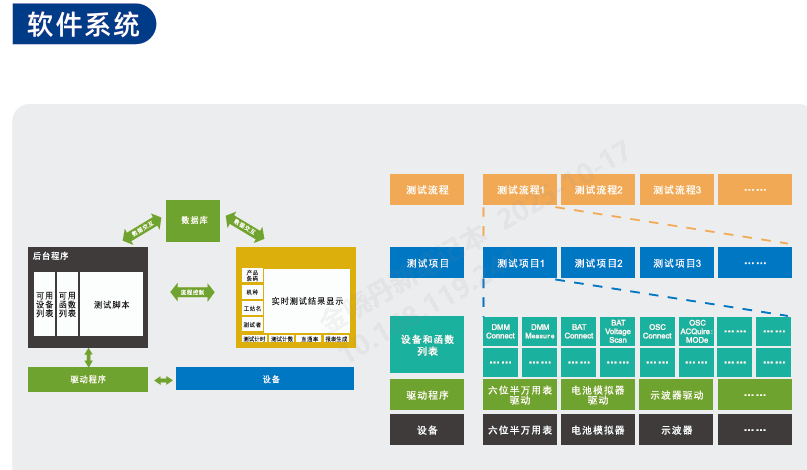

Script programming and customizable interface: Script-based programming facilitates custom test solutions. The upper computer interface can be tailored to user demands.
03
Bidirectional current design, supporting active equalization function testing.
02
Accurate and reliable testing: High battery simulation precision, with output and sampling accuracy ≤ 1 mV.
01
High integration & independent control: Simulate up to 200 cells in series. Each simulation channel is independently controlled and features dual-range current sampling to measure operating current, equalization current and static current.
Specifications


Case Study
Business Inquiry
If you need to know more details, you can leave a message for consultation, and our consultants will provide you with more information and materials
