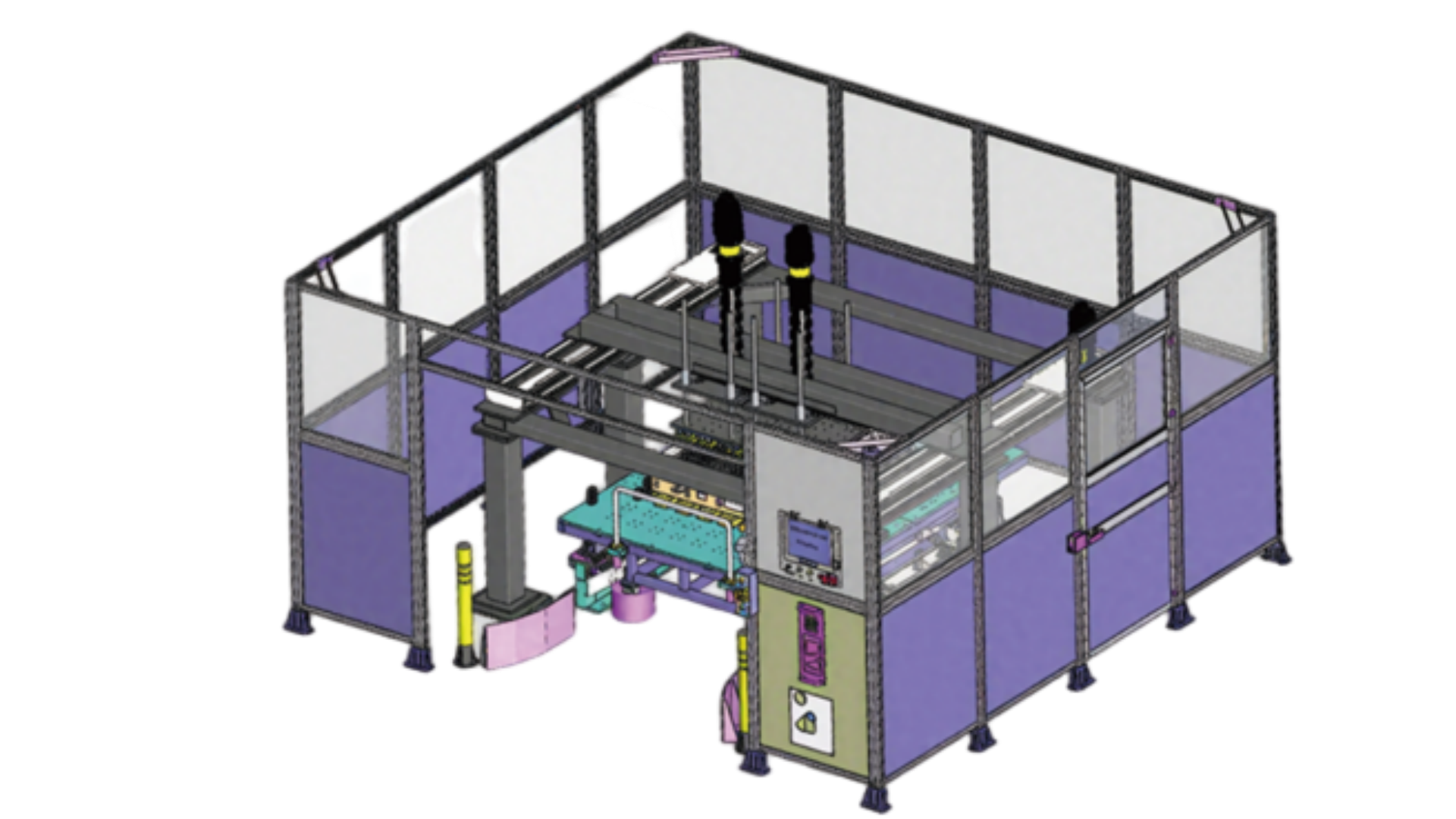

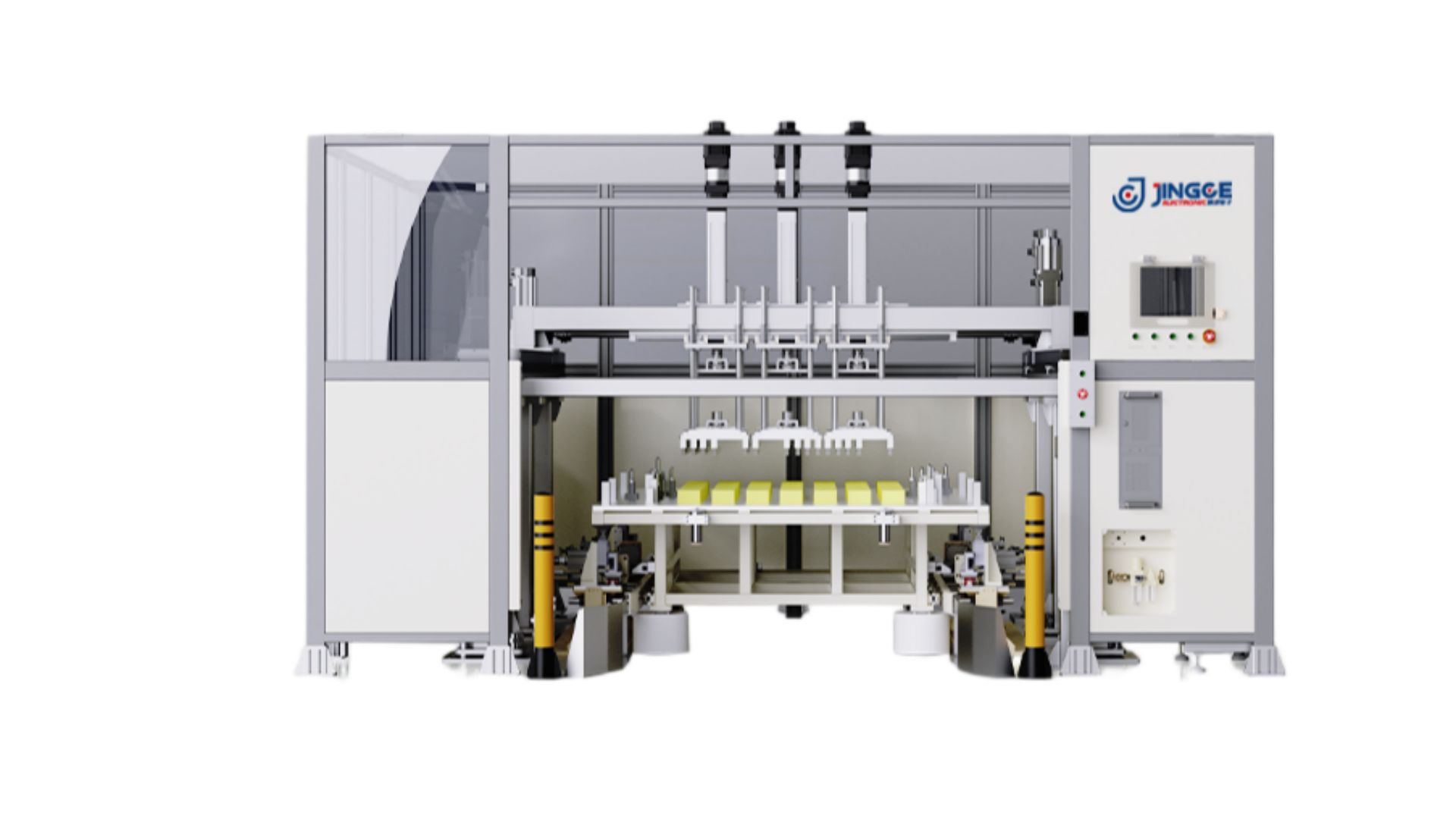

Post-Gluing Pressing Machine
Equipment Description:

This equipment is used to level the overall flatness and height difference of cells in battery packs. It is equipped with overpressure alarm function to prevent overpressure, the upper pressure limit can be set, and the Z-direction has a limit function.



Equipment advantages
06
Mature technology with equipment failure rate ≤ 2%.
05
Wide compatibility: Battery pack dimensions: Length 900-2500 mm, Width 600-1800 mm, Height 100-200 mm.
04
High productivity: Line efficiency reaches 18 JPH.
03
Real-time pressure monitoring. Pressing force range: 0 ~ 1000 kgf with pressure accuracy of 1%.
02
Intelligent model change, simple operation and easy maintenance. Curing time is adjustable. Production data is bound and uploaded to MES system.
01
Safe and reliable, fitted with multiple emergency stop switches, door & window sensors and safety signs.
Specifications
Basic Parameters Value
Equipment Dimensions L2500×W3000×H2500mm
First Pass Yield ≥99%
MTBF ≥4h
MTTR ≤0.5h
Cell Height Difference ≤1mm
