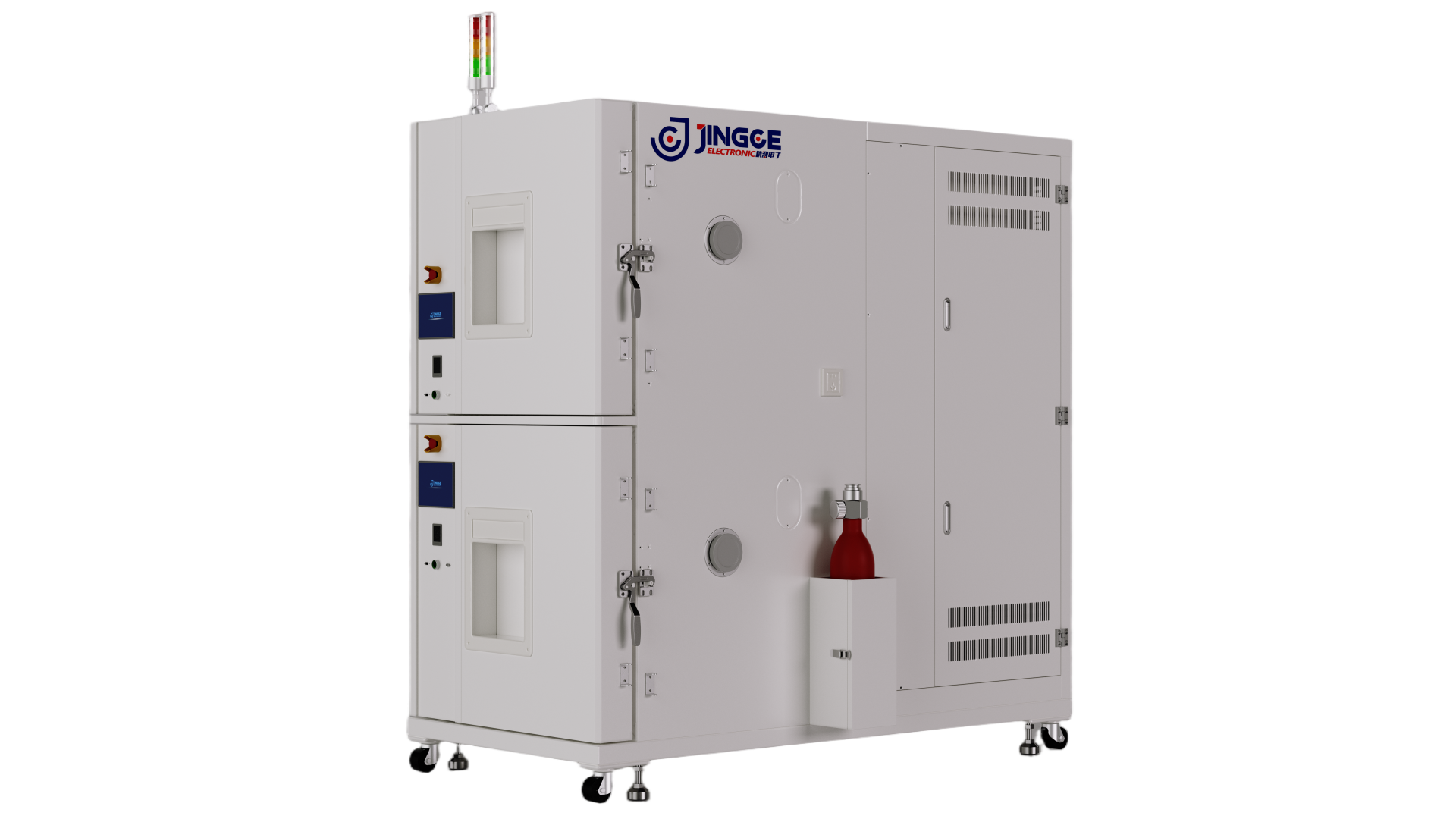

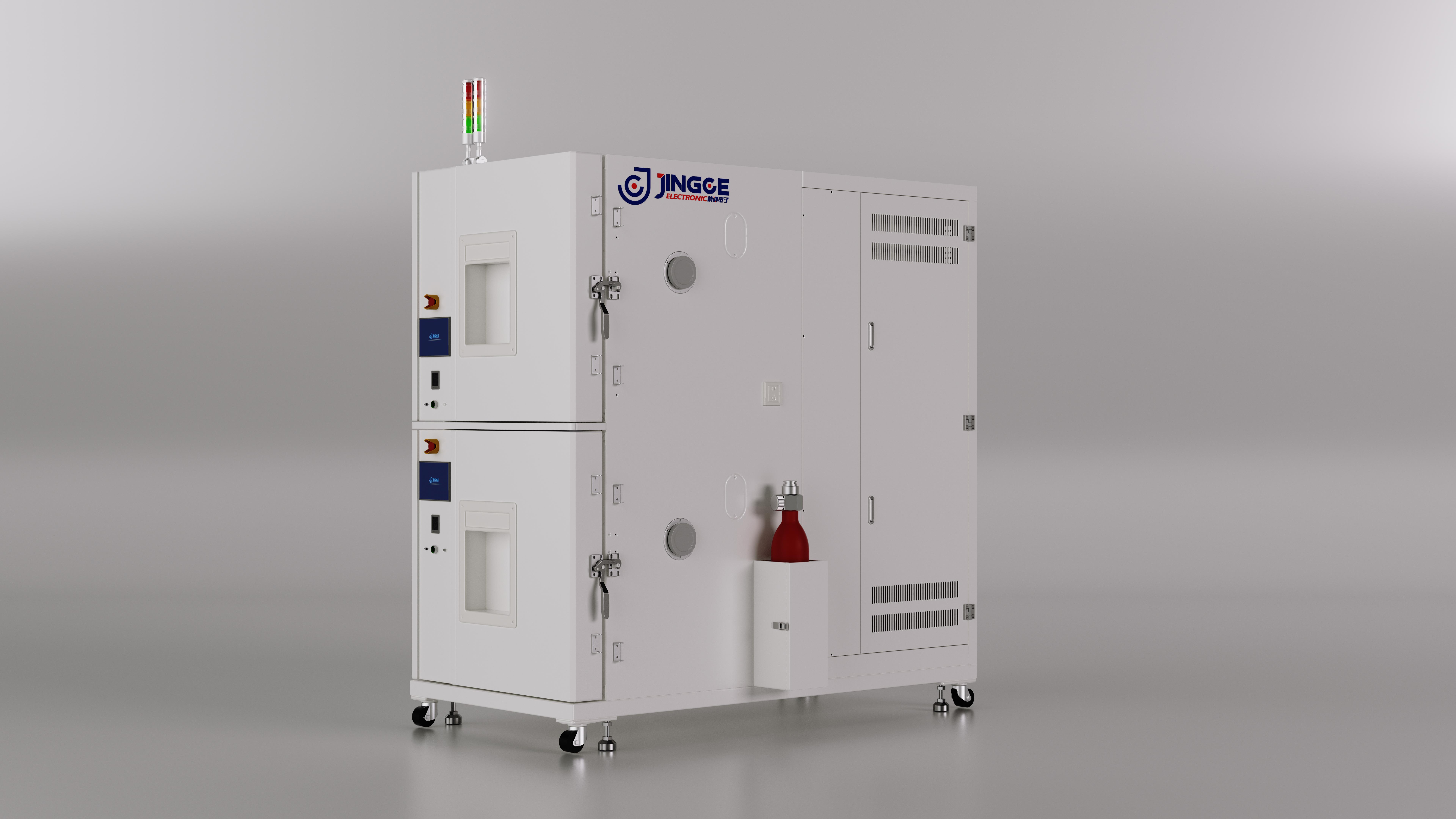

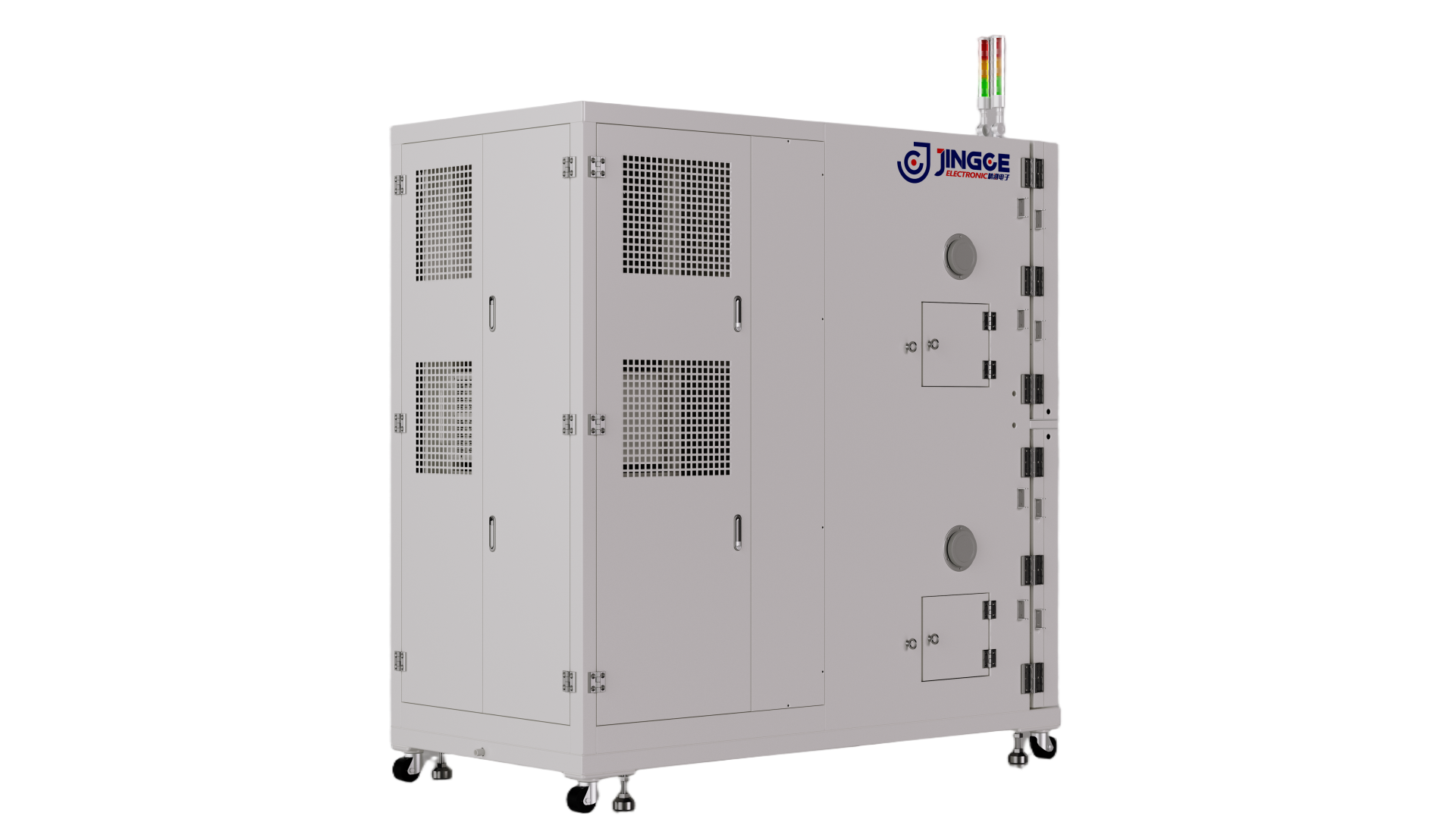

Temperature Chamber Test Integrated Machine
Equipment Description:

This equipment integrates power supply and high-low temperature chamber, realizes coordinated control via PC software, and monitors the running status of power supply and chamber in real time. It is mainly used for electrical performance test of lithium-ion batteries (square aluminum case, pouch, cylindrical) in R&D laboratories, such as cycle, rate, high-low temperature discharge, grading, etc.


Equipment advantages
04
Customizable current range and fixtures.
03
Precise temperature control: Temperature deviation ±2℃, temperature fluctuation ≤±0.5℃. Heating rate: 20℃ → 150℃ at 3℃/min; Cooling rate: 20℃ → -40℃ at 1℃/min.
02
Wide temperature range: -70℃ ~ 150℃, which accurately simulates the operating conditions of batteries under extreme high and low temperatures.
01
Comprehensive safety design with multiple protection devices to ensure safe battery temperature condition tests: automatic explosion-proof pressure relief, over-temperature protection and smoke alarm, as well as abnormal circulating fan monitoring.
Specifications
Item Specification
Charge/discharge voltage range Charging voltage: 0–5VDischarging voltage: 1.5V~5V (at battery terminals)
Voltage accuracy ±0.02% FS
Temperature accuracy ±1°C
Charge/discharge current accuracy ±0.03% FS (accuracy in current range)
Radiation source ≥ 150KV
Temperature chamber range -40°C ~ 150°C
Heating rate ≥3°C/min (full range from -40°C to 150°C)
Cooling rate ≥1°C/min (full range from 150°C to -40°C)
