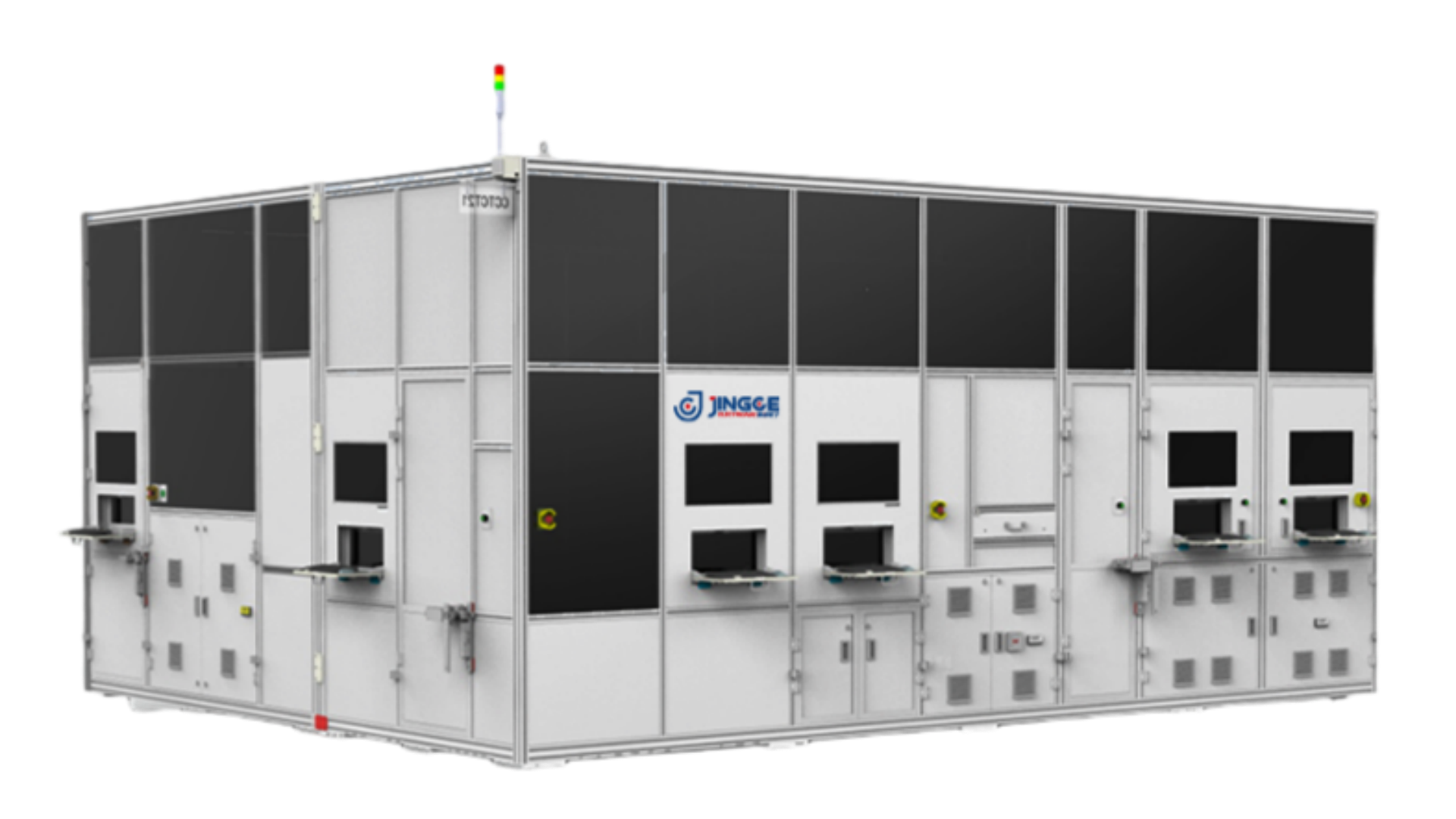

Cell Six-Side Inspection Machine
Equipment Description:

The equipment is mainly used for appearance defect inspection after cell blue film wrapping. It can detect defects such as appearance damage, scratches, indentations, wrinkles, pits, bubbles and stains. It has automatic loading, unloading and inspection functions, with fast inspection speed and high detection rate.



Equipment advantages
05
Integrated with deep learning functions.
04
Intelligent classification with defect classification accuracy up to 99%.
03
Precise and efficient inspection: False detection rate ≤ 0.5%, missed detection rate ≤ 0%.
02
Automatic inspection featuring fast speed and high detection rate.
01
Equipped with vision positioning and mechanical structure for automatic loading and unloading. The whole process runs fully automatically with no manual intervention required.
Specifications
Item Specification Remarks
Efficiency ≥30PPM Calculate the production quantity (OK + NG) for 2 hours under sufficient material conditions, and deduct the number of batteries damaged due to equipment factors.
Defect rate ≤0.05% Battery damage caused by equipment reasons.
Failure rate ≤0.5% Excluding failures caused by non-equipment factors. After stable operation, calculate the equipment downtime within 7 consecutive days and nights. Faults resolved within 3 minutes are not included in the failure rate.
First pass scanning rate ≤0.5% Excluding failures caused by non-equipment factors. After stable operation, calculate the equipment downtime within 7 consecutive days and nights. Faults resolved within 3 minutes are not included in the failure rate.
First pass scanning rate ≥99.98% Do not count scanning failures caused by the barcode's own defects. Only count the first pass rate of A, B, and C grades.
Over-kill rate <3% Over-killed OK quantity / Total production quantity * 100% (Total production quantity is not less than 50,000 PCS).
Detection rate Based on the requirements of defect subdivision categories Detected NG / Total input NG * 100% (Total input NG is not less than 1,000 PCS. Calculate the detection rate for each defect type by only inputting NG products corresponding to the defect for testing).
Missing detection rate ≤0.025% Missing NG quantity / Total production quantity * 100% (Total production quantity is not less than 50,000 PCS).
Model change time Change historical model ≤ 6 man-hours
Change new model ≤ 7 man-days 		No need to replace tooling fixtures: model change time ≤ 30 minutes.Need to replace tooling fixtures: model change time calculated as 6 man-hours.Mechanical & electrical model change time needs to be calculated according to historical models.Visual inspection model needs to ensure the ability to distinguish OK and NG products within 7 days (if the model change does not meet the requirements for NG product classification accuracy, the defect detection rate and over-kill rate (<5%) must still be met for defects of extremely dangerous and serious levels).7 days include all model change time for software/hardware and model training.
