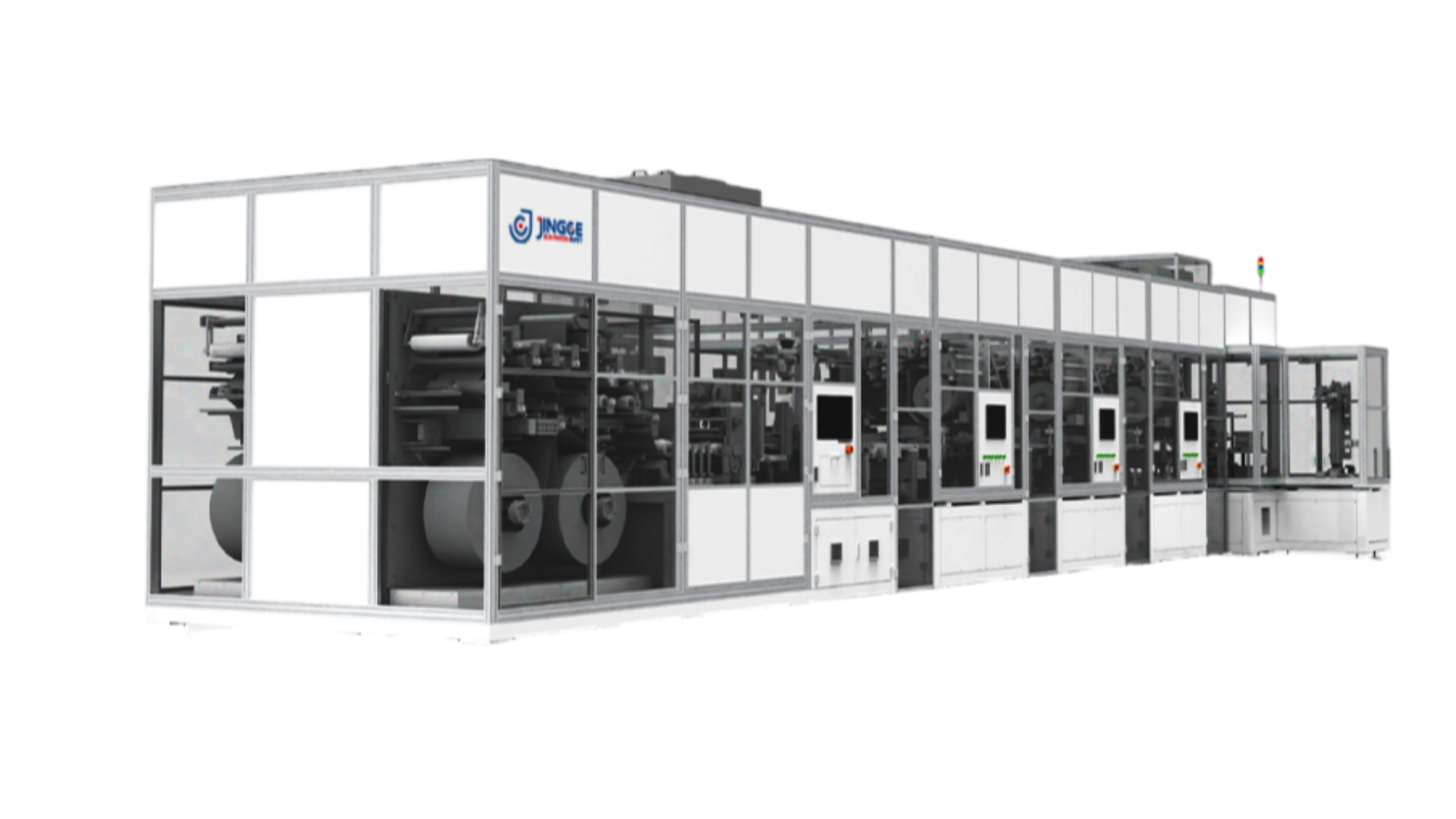

Cutting and Folding Integrated Machine
Equipment Description

The equipment consists of three main parts: electrode making assembly, lamination assembly, and adhesive pasting & hot pressing assembly. It performs processes including electrode sheet cutting, conveying, Z-type lamination, cell tail winding, adhesive pasting, hot pressing and unloading. After insulation testing, weighing and thickness measurement, qualified cell products are output.


Equipment advantages
08
The whole machine is equipped with an electrode sheet dust removal system and FFU to reduce the impact of dust during production and improve the pass rate of cells.
07
A special maintenance channel is designed inside for convenient maintenance.
06
The high-beat components are equipped with linear motor modules, featuring higher acceleration and positioning accuracy.
05
CCD detection and positioning are adopted in all links of electrode sheets after die cutting to ensure product quality and lamination accuracy.
04
Integrated die cutting and lamination design reduces labor and increases plant utilization rate.
03
Eliminates the double-sheet risk caused by taking materials from the magazine of traditional lamination machines.
02
Eliminates electrode sheet damage during the process of transporting electrode sheets from die cutting to lamination machine.
01
Integrates electrode sheet unwinding, lamination, adhesive pasting, unloading and other functions into one.
Specifications
Overall Operating Efficiency ≥360pcs/min (0.5s/pcs/station)
Auxiliary Time 7s
Cutting Dimension Accuracy ±0.15mm
Burr ≤8μm
Adjacent Electrode Sheet Alignment ≤8μm
Overall Alignment Accuracy ±0.3mm
tail Winding Alignment ±0.5mm
Cell Pass Rate ≥99.5%
Unwinding Tension Fluctuation ≤5%
Separator Tension Fluctuation ≤8%
Equipment Failure Rate ≤2%
Electrode Sheet Size Compatibility Length 80~380mm; Width 80~200mm
