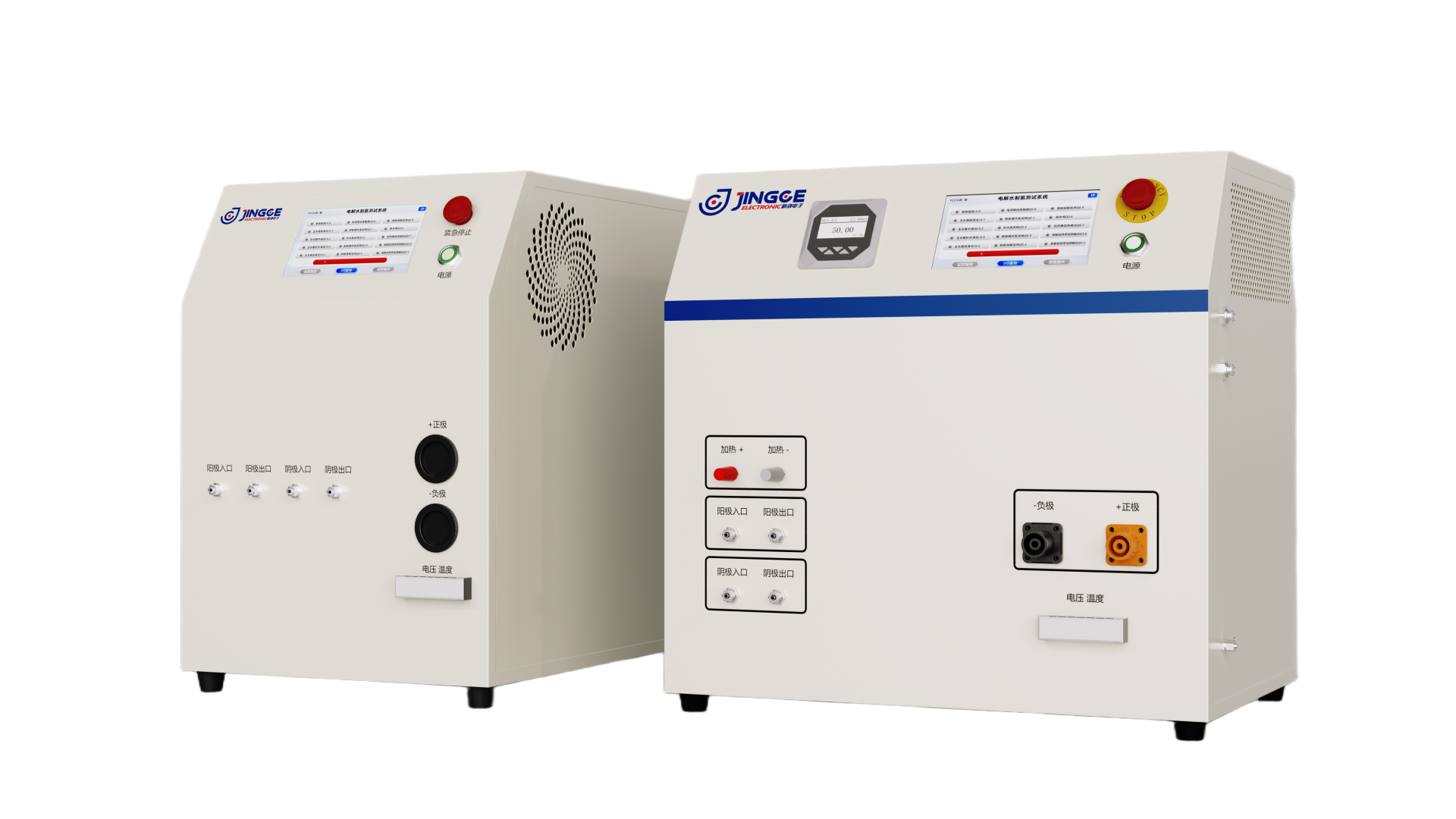

Low Power (1-5KW) Water Electrolysis Hydrogen Test Bench
Equipment Description:
The low-power (1-5KW) water electrolysis hydrogen production test bench is an integrated laboratory R&D test platform, mainly used for accurate evaluation and characteristic analysis of the performance, efficiency, durability and safety of small electrolyzers. Types include PEM, alkaline and seawater water electrolysis hydrogen production test benches.

Equipment advantages
05
Precisely controls, monitors and records key parameters such as voltage, current, temperature, pressure, gas purity and flow rate.
04
Integrated with multiple safety protections including leakage detection, overpressure protection and automatic pressure relief to safeguard personnel and equipment.
03
Low operating energy consumption and pure water consumption. It produces a small volume of gas, resulting in low pressure for hydrogen storage and treatment with high intrinsic safety.
02
Adopts modular design for quick disassembly, assembly, maintenance and upgrade.
01
Compact footprint and small size, ideal for placement on laboratory benches
Specifications
Power Module Power 1-5KW
Power Module Voltage Range 0~15V, Accuracy ±±0.05%F.S.
Power Module Current 0~350A, Accuracy ±±0.05%F.S.
Hydrogen / Oxygen Back Pressure Range Normal pressure
Water Flow Rate Range Max flow rate 800 ml/min, Accuracy ±±1%F.S
Temperature Control Range RT-95°C, Control accuracy ±±0.5°C
temperature Rise Rate ±5°C/min
CVM Patrol Up to 5 channels, range -5~+5V, accuracy 1mV
3D reconstruction algorithm ≤ 3s
Hydrogen Sensor in Oxygen Range: 0~2%, Accuracy: ±±2%F.S, can calibrate smaller range
Oxygen Sensor in Hydrogen Range: 0~2%, Accuracy: ±±2%F.S, can calibrate smaller range
