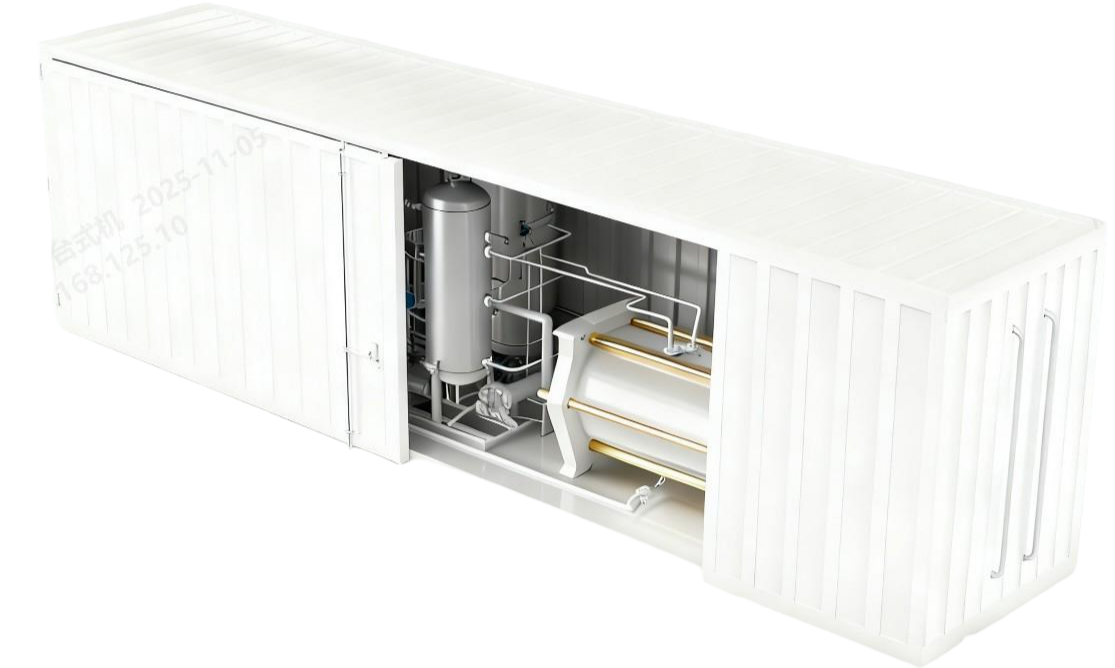

Alkaline Water Electrolysis Hydrogen Equipment
Equipment Description:

The alkaline water electrolysis hydrogen generator is a mature and widely used industrial-grade equipment for large-scale, low-cost hydrogen production. It produces hydrogen through electrochemical reactions in concentrated alkaline solutions, and is known for its high reliability, long service life and good economy.


Specifications
Rated Hydrogen Production (Nm3/h) 1000
Operating Pressure (MPa) 1.6
DC Power Consumption (kWh/Nm3) ≤4.3
Power Fluctuation Range 30%-110%
Hydrogen Purity (after purification) 0.99999
Operating Temperature (°C) 90±5
Ambient Temperature (°C) 5-40
lectrolyte (KOH) 30%
