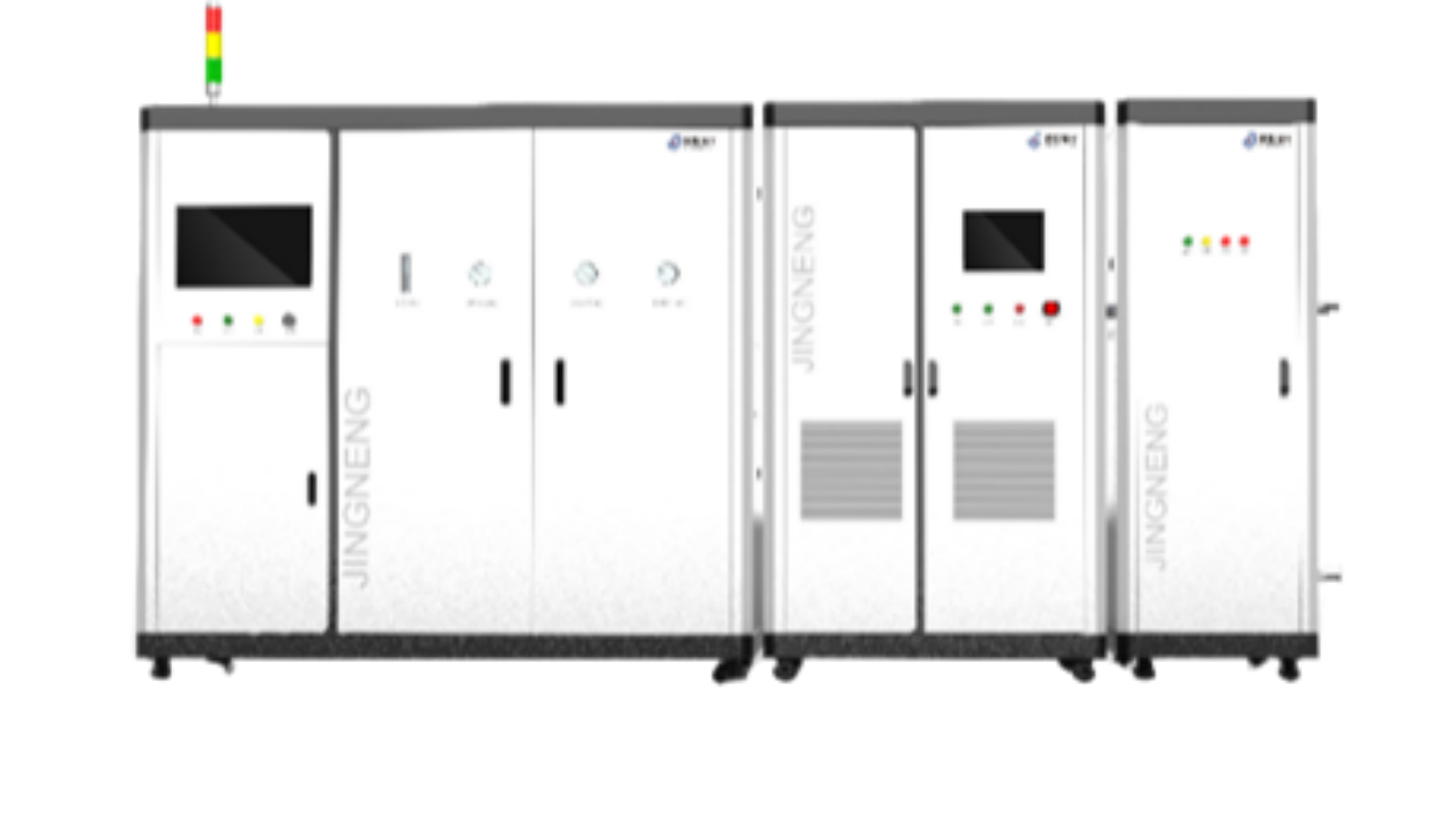

Fuel Cell Engine Test Bench
Equipment Description:

Fuel Cell Engine Test Station is a highly complex integrated system used for comprehensive testing, validation and calibration of a complete fuel cell engine (or fuel cell system) in a laboratory environment.
The test object is a complete power generation system including stack, air supply system, hydrogen supply system, thermal management system, control unit and all necessary auxiliary components.



Equipment advantages
04
Can simulate system-level faults (such as hydrogen supply interruption, cooling failure), test the safety protection mechanism of the system, and predict the system life through accelerated stress testing.
03
Can test the start-up performance, power output and reliability of the engine under extreme environments such as high/low temperature and high altitude (low pressure) in a controlled temperature and humidity chamber.
03
Can test the start-up performance, power output and reliability of the engine under extreme environments such as high/low temperature and high altitude (low pressure) in a controlled temperature and humidity chamber.
02
Can accurately simulate complex dynamic loads (such as acceleration, climbing) and frequent start-stops of the whole vehicle under actual road conditions, verifying the transient response, durability and efficiency of the engine.
01
Tests all key components including stack, air compressor, hydrogen circulation pump, humidifier and control unit as a whole, evaluating system-level matching, coordination and control strategies.
Specifications
Key Parameters
 Parameter Values
Electronic Load Power 200KW–500KW
Voltage Accuracy ±±0.05% F.S.
Current Accuracy ±±0.05% F.S.
Gas Flow Control Accuracy ±±1% F.S.
Cooling Water Flow Control Accuracy ±±1% F.S.
Cooling Water Temperature Control Accuracy ±1°C (steady state)
Case Study
Business Inquiry
If you need to know more details, you can leave a message for consultation, and our consultants will provide you with more information and materials
