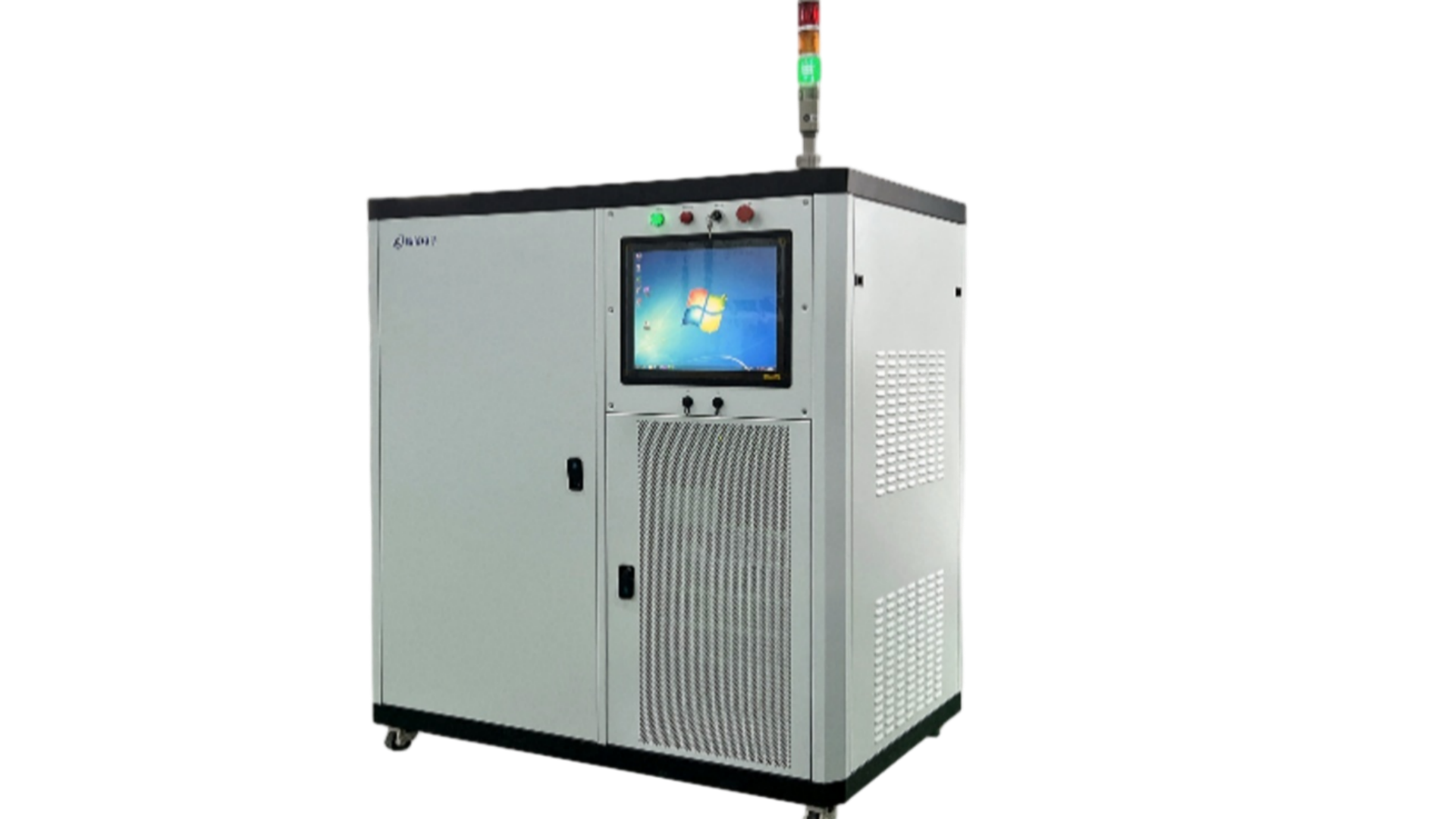

PEM Water Electrolysis Hydrogen Production Equipment
Equipment Description:

PEM (Proton Exchange Membrane) water electrolysis hydrogen production equipment is an advanced system that uses electricity to split water molecules into high-purity hydrogen and oxygen.With high efficiency, fast response and high hydrogen purity, it is regarded as an ideal hydrogen production technology coupled with renewable energy (wind, solar, etc.).


Equipment advantages
03
Operates stably at rated power, supports fast start-stop, and provides high operating flexibility.
02
Adopts zero-gap structure with compact size. Power density is much higher than traditional alkaline electrolyzers, making it ideal for modular design and distributed applications.
01
High operating current density and leading energy conversion efficiency. Responds to power fluctuations in seconds, perfectly adapting to the intermittency and fluctuation of wind and solar renewable energy.
Specifications
Key Parameters
 Parameter Values
Rated Hydrogen Output 50-300 Nm3/h
Rated Oxygen Output 25-150 Nm3/h
Rated Current 3 A/cm2
Hydrogen Backpressure 1.5~3.0 MPa
Oxygen Backpressure 0~0.5 MPa
Rated Power 0.25-1.25 MW
Rated Power Consumption ≤4.3 kWh/Nm3
Load Fluctuation Range 10~120%
Design Service Life 80,000 hours
Water Quality Requirement ≤0.1 μS/cm
