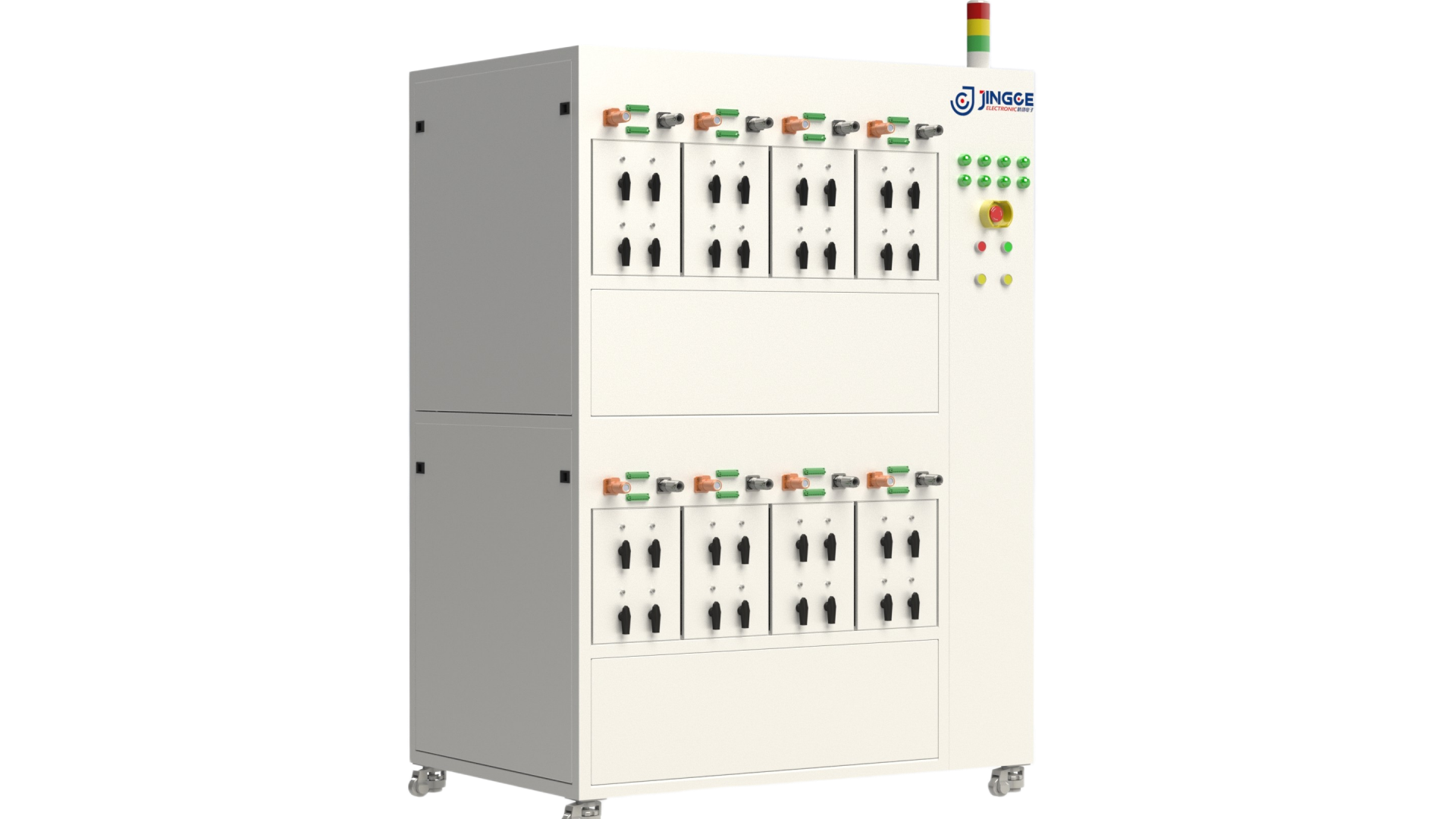

Multi-Channel Water Electrolysis Hydrogen Production Test Station
Equipment Description:

Multi-channel water electrolysis hydrogen production test bench is an efficient platform mainly used for laboratory R&D.It can test multiple electrolyzers or a single electrolyzer simultaneously, greatly improving R&D efficiency and data comparability.Types: PEM, Alkaline and Seawater water electrolysis hydrogen production test benches.



Equipment advantages
03
Each channel can be independently controlled, allowing different test items (such as durability test, performance curve test, dynamic response test) to be carried out at the same time, greatly improving equipment utilization and R&D flexibility.
02
Provides an ideal platform for evaluating the influence of single variables (such as different catalysts, membranes, diffusion layers or assembly processes). All channels operate under equal conditions, ensuring high accuracy and comparability of data.
01
Capable of testing multiple electrolyzers or membrane electrodes simultaneously under identical conditions, greatly shortening R&D cycle and realizing batch output of R&D data.
Specifications
Key Parameters Parameter Values
Power Module Power 1-5KW
Power Module Voltage Range 0~15V, accuracy ≤±0.05% F.S.
Power Module Current 0~350A, accuracy ≤±0.5% F.S.
Hydrogen & Oxygen Backpressure Range Normal pressure: 1-5bar, accuracy ≤±0.5% F.S.; High pressure: Normal pressure - 40bar, accuracy ≤±0.5% F.S.
Single Channel Water Flow Range Max flow rate 800 ml/min, accuracy ≤±1% F.S.
Temperature Control Range RT-95℃, control accuracy ≤±0.5℃
Temperature Rise Rate ≤5°C/min
Max Number of Channels 6
CVM Patrol Inspection According to the number of channels
Hydrogen-in-Air Sensor Range: 0~2%, accuracy: ≤±2% F.S., can calibrate to smaller measurement range
Oxygen-in-Hydrogen Sensor Range: 0~2%, accuracy: ≤±2% F.S., can calibrate to smaller measurement range
