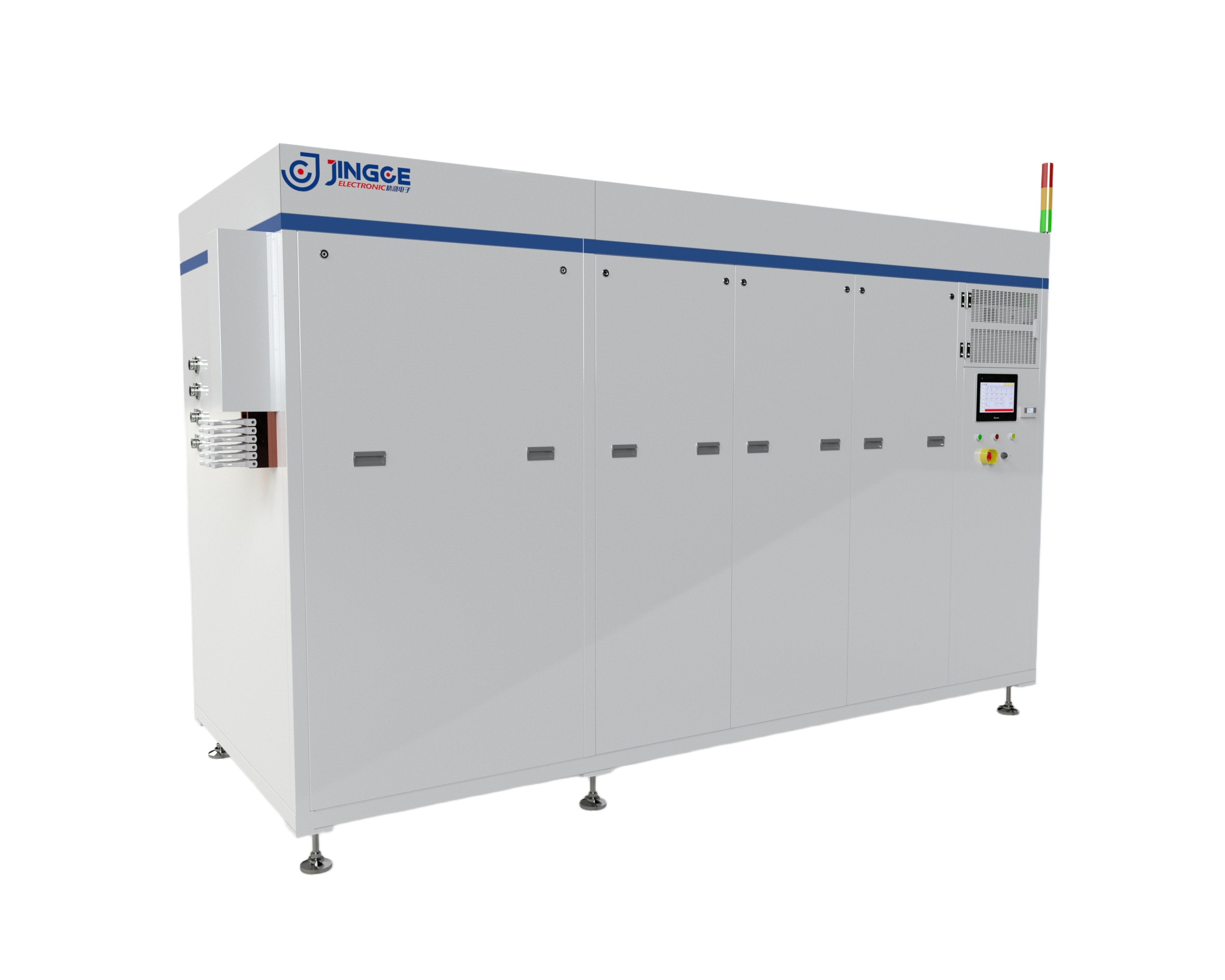

High Power (100KW-1MW) Water Electrolysis Hydrogen Production Test Bench
Equipment Description:

High Power (100kW-1MW) Water Electrolysis Hydrogen Production Test Bench is a high-end industrialized equipment.It is not only a performance testing device, but also a comprehensive R&D and verification platform that can accurately simulate complex working conditions, analyze material behavior and predict electrolyzer life.Types include:PEM, Alkaline and Seawater Water Electrolysis Hydrogen Production Test Benches.


Equipment advantages
01

It can expose core engineering issues such as thermal management, gas-liquid separation, pressure balance, and system control that cannot be detected in low-power tests under real high-power, large-flow, and severe operating conditions, providing direct evidence for product optimization.
02

It can perform long-term full-load, overload, and dynamic cyclic stress tests on electrolyzers to accelerate life assessment, verify reliability and durability under extreme conditions, and provide data support for product warranty.
03
It can verify the matching and cooperative control of electrolyzers with auxiliary systems, and provide a full-scale test platform for the development of integrated control strategies for direct coupling with renewable energy (e.g., wind farms, photovoltaic power stations) and downstream hydrogen application scenarios.
Specifications
Key Parameters Parameter Values
Power Module Power 100KW-1MW
Hydrogen & Oxygen Backpressure Range Normal pressure - 40bar, accuracy ≤±0.5% F.S.
Hydrogen Flow Range Max flow rate 40m3/H, accuracy ≤±1% F.S.
Temperature Control Range RT-95℃, control accuracy ≤±0.5℃
Temperature Rise Rate ≤5°C/min
CVM Patrol Inspection Max 1024 channels, range: -5~+5V, accuracy ±1mV
Hydrogen-in-Air Sensor Range: 0~2%, accuracy: ≤±2% F.S., can calibrate to smaller measurement range
Oxygen-in-Hydrogen Sensor Range: 0~2%, accuracy: ≤±2% F.S., can calibrate to smaller measurement range
