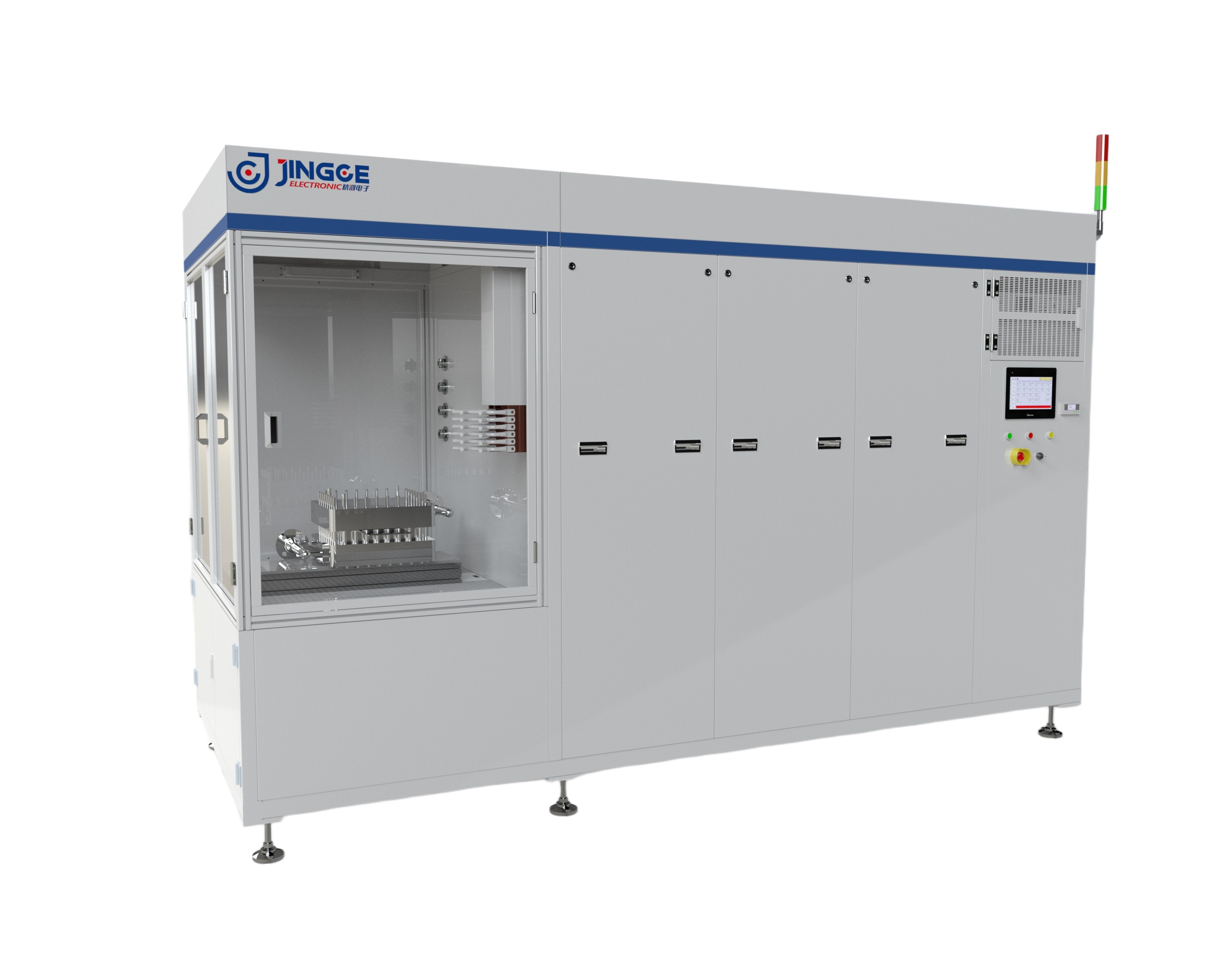

Medium Power (5-100KW) Water Electrolysis Hydrogen Production Test Bench
Equipment Description:

Medium Power (5-100kW) Water Electrolysis Hydrogen Production Test Bench is a special device designed for R&D, performance evaluation and lifetime test of electrolyzers.It can accurately simulate and control various operating conditions of electrolyzers in a laboratory environment.Types include:PEM, Alkaline and Seawater Water Electrolysis Hydrogen Production Test Benches.



Equipment advantages
01

Accurately measure key parameters of the electrolyzer such as energy consumption, efficiency, gas purity, and dynamic response, providing reliable data support for technical iteration and optimization.
02

Simulate fluctuating input from renewable energy sources such as wind and solar power, testing the electrolyzer's start-stop, load-varying capability and durability under real operating conditions.
03

Integrated with a comprehensive safety monitoring and interlock protection system to ensure safe testing, and provide a basis for product certification and enterprise standard establishment.
04

Adopts modular design with expandable functions.
Specifications
Key Parameters Parameter Values
Power Module Power 5-100KW.
Hydrogen & Oxygen Backpressure Range Normal pressure - 40bar, accuracy ≤±0.5% F.S.
Hydrogen Flow Range Max flow rate 14m3/H, accuracy ≤±1% F.S.
Temperature Control Range RT-95℃, control accuracy ≤±0.5℃
Temperature Rise Rate ≤5°C/min
CVM Patrol Inspection Max 1024 channels, range: -5~+5V, accuracy ±1mV
Hydrogen-in-Air Sensor Range: 0~2%, accuracy: ≤±2% F.S., can calibrate to smaller measurement range
Oxygen-in-Hydrogen Sensor Range: 0~2%, accuracy: ≤±2% F.S., can calibrate to smaller measurement range
